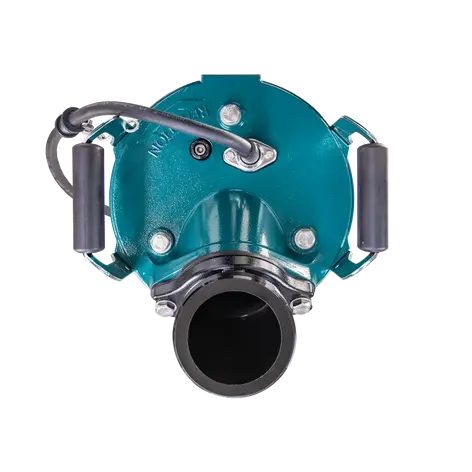

HYDROWAVE 5T – 5HP Pompa sommergibile - vista a 45°

HYDROWAVE – Submersible drainage pump for abrasive water

€1,720.00Price
Excluding Sales Tax
HYDROWAVE is a high-performance submersible drainage pump designed for demanding professional applications. Thanks to its high-chrome steel semi-open impeller and double SIC/SIC mechanical seal, it offers excellent abrasion resistance, operational reliability, and continuous duty performance for construction sites, mines, tunnels, and civil engineering projects.
It is available in various versions from 2 to 7.5 HP, with different discharge sizes.

Professional pumps for construction sites and abrasive water

The HYDROWAVE series includes single-phase and three-phase submersible pumps from 2 to 7.5 HP, designed for high-performance liquid transfer and dewatering under extremely demanding conditions.

Equipped with semi-open impellers, cooling jackets, and robust hydraulic components, they efficiently handle clean water, industrial fluids, and liquids containing sand, silt, sludge, and abrasive particles.

HYDROWAVE pumps are designed for applications ranging from civil engineering and construction sites to mining and industrial plants. They guarantee reliability, durability, and continuous operation even in heavy-duty conditions.

With flow rates and heads suitable for versatile tasks, they are the ideal choice wherever power, flexibility, and flawless dewatering are required.

2 HP - 7.5 HP

P2

23 m

MAXIMUM HEAD

1900 l/min

MAXIMUM FLOW RATE

Features

  • Semi-open high-chrome steel impeller

  • High resistance to abrasive liquids

  • Stainless steel outer casing and strainer

  • Double mechanical seal in CA/CE + SiC/SiC

  • Heat-treated AISI 410 stainless steel shaft

  • Efficient circumferential cooling for continuous operation

  • Robust aluminium construction, 14–17% lighter than a cast iron dewatering pump

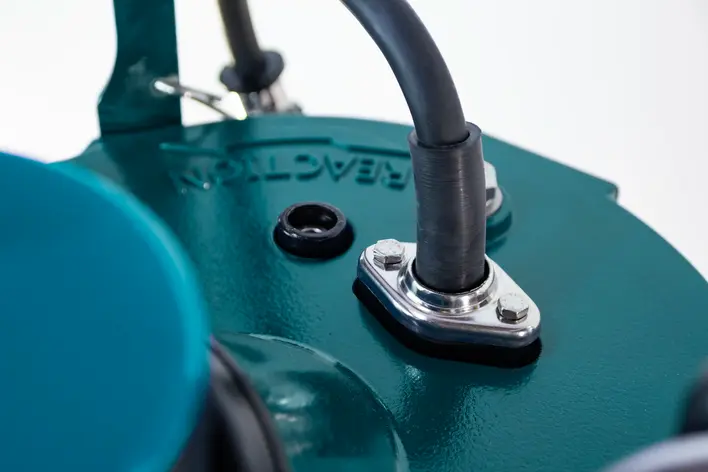

HYDRO WAVE 75 T dettaglio 1.webp

Want to know more about this product?

Contact us for a quote and discover the discounted price reserved for you!

Select an option
Private User
Company

PRIVACY

I declare that I am at least sixteen years old and, if I am under sixteen, that I have been authorized by the holder of parental responsibility; therefore, I consent to the processing of my personal data as set out in the privacypolicyPolicy.

COMMUNICATION

S I consent to the processing of my personal data to receive newsletters, telephone communications (SMS, WhatsApp, voice calls), informative contact forms, and requests for information.

Connected Sets

Discover the sets that use this product

Details

Important information about key strengths

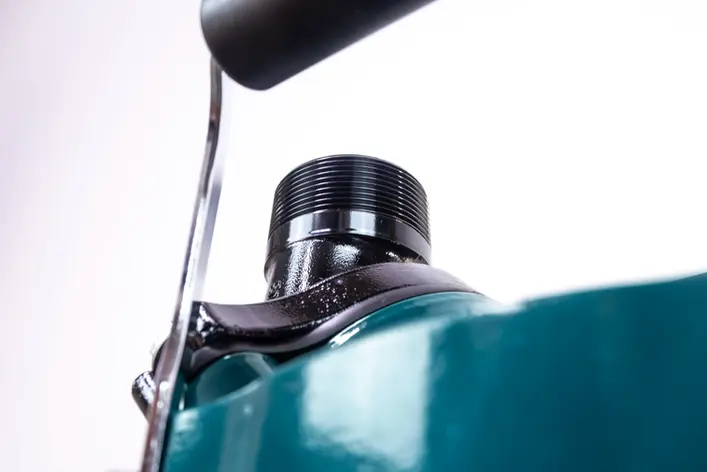

Hose fitting on Force drainage pump

45° Elbow

Fitting that allows a quick and secure connection of the pump to a flexible hose, simplifying installation and use. 45° adjustable.

Semi-open steel impeller

Semi-open impeller in high-chromium steel

The semi-open high-chromium steel impeller combines excellent wear resistance with enhanced solids handling capability. Ideal for abrasive or slightly contaminated fluids, it offers an optimal balance between durability and hydraulic performance.

Included Products

Model Technical Data

To learn every detail about this product

​

MODEL

HP

MAX HEAD

MAX FLOW RATE

SUCT. - DISCH.

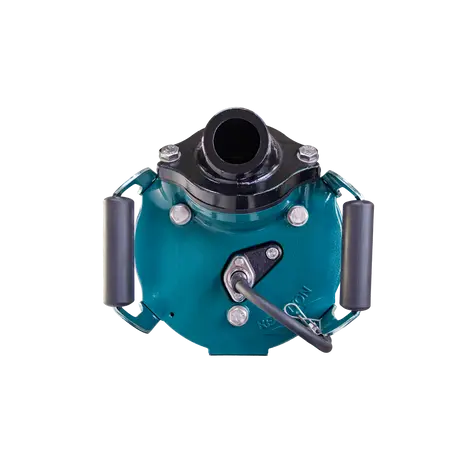

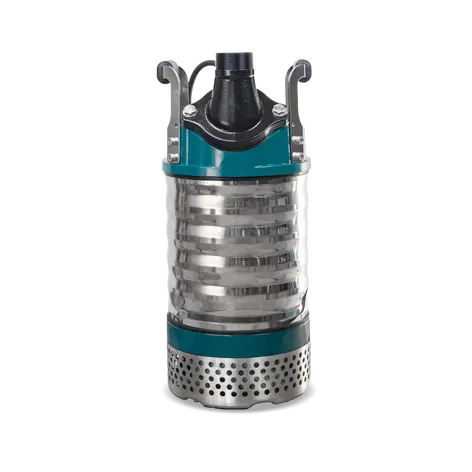

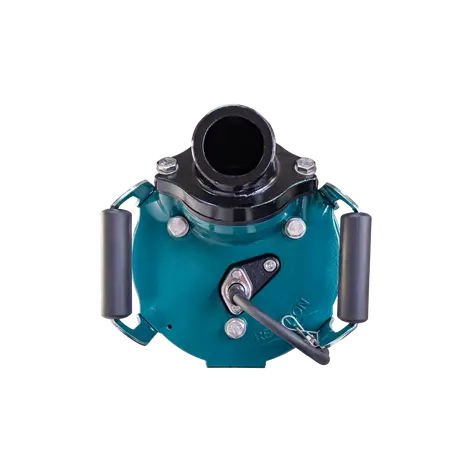

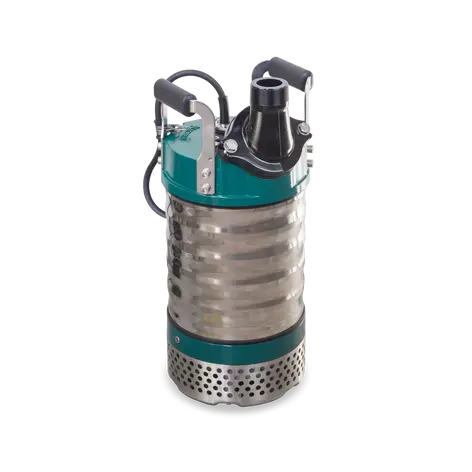

HYDROWAVE 2/2

2

23 m

500 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

2" (DN50 PN25)

Scopri

SUCT. - DISCH.

HYDROWAVE 2/3

2

23 m

500 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

3"

Scopri

SUCT. - DEL.

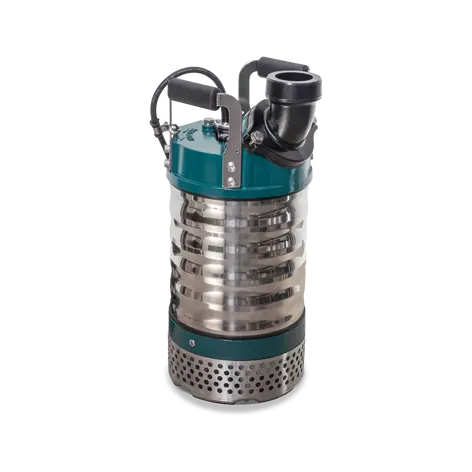

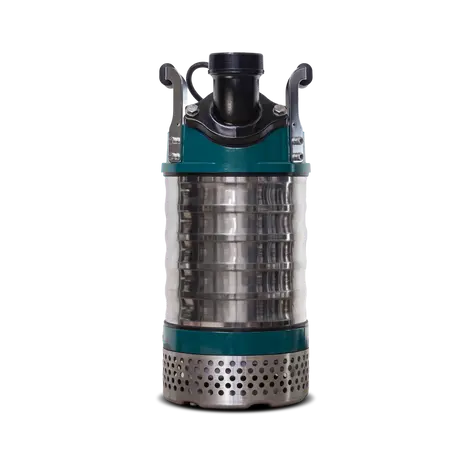

HYDROWAVE 2T

2

21 m

450 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

3"

Scopri

SUCT. - DEL.

HYDROWAVE 3T

3

23 m

700 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

3"

Scopri

SUCT. - DEL.

HYDROWAVE 5T

5

21 m

900 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

3"

Scopri

SUCT. - DEL.

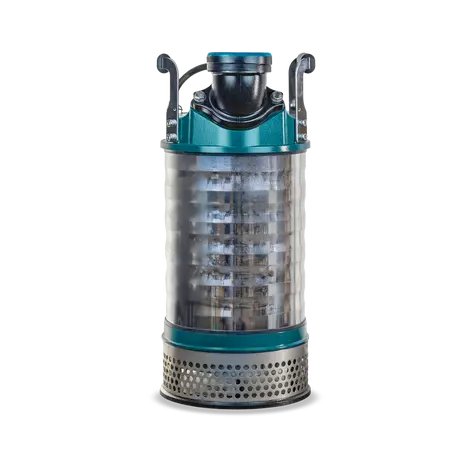

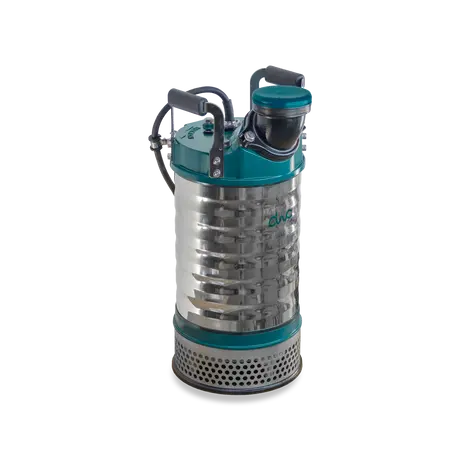

HYDROWAVE 7.5T

7.5

23 m

1900 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

4"

Scopri

SUCT. - DEL.

Specifications

Product limits and composition

Operating limits

Liquid temp.

0/40°C (32/104°F)

Features

Frequency

50Hz

Motor

2P (2850 RPM) . Dry motor

Insulation

Class F

Protection

IP 68

Protector

Auto-Cut

Bearing

Ball type

Mechanical seal

Double mechanical seal

Impeller

Semi-open impeller

Key Parameters

Materials

Motor cover

AlSi7Mg

Motor frame

AISI 304

Shaft

AISI 410

Mechanical seal

Upper: CA/CE ; Lower: SIC/SIC

Pump body

EN-G JL-200

Impeller

High-chromium steel

Cable

H07RN-F / STOW

Related products

Lightweight submersible drainage pump HYDROBOOST

0.5 HP - 2 HP

18 m

515 l/min

HYDROBOOST

Lightweight submersible drainage pumps

Discover
Heavy-duty high-performance pump for industrial drainage HYDROFORCE

10 HP - 20 HP

54 m

2200 l/min

HYDROFORCE

Heavy-duty high-performance pumps for industrial drainage

Discover

Related accessories

Float switch for DROP pumps

Level control

10(8)

IP68

DWC DROP float switch

Reliable, submersible float switch featuring an integrated counterweight for level control in drainage and wastewater applications.

Discover
blue layflat 1" blue layflat 2"

2" - 3"

4.0 bar

10.0 bar

DWC LAYFLAT

DWC LAYFLAT

Discover

Applications

Typical use cases and environments where this product delivers its best performance

FAQ

?

What conditions are HYDROWAVE pumps designed for?

For heavy-duty drainage applications with abrasive liquids, sand, silt, and sludge.

?

What power range does the series cover?

From 2 to 7.5 HP, single-phase or three-phase.

?

Can they operate in continuous duty?

Yes, they are designed for 24/7 in operation in construction sites, mines, and industrial plants.

?

What materials ensure its durability?

Chrome steel impellers and stainless steel bodies.

Product comparison

Compare the main features and performance of similar models

Features

HP

MAX HEAD

MAX FLOW RATE

HEIGHT

MIN. WATER LEVEL

WIDTH

DISCHARGE

PRICE

Professional pump for construction sites and abrasive water HYDROWAVE

HYDROWAVE

2 - 7.5

30 m

1900 lpm

555-633 mm

306-324 mm

122-133 mm

2" - 4"

From

€1,720.00

HYDRO WAVE 100 T1 sx photoshop.webp

HYDROBOOST

0.5 - 2

17.5 m

515 lpm

310-464 mm

243-313 mm

94 mm

2" (DN50 PN25)

Da

€329.00

Discover
HYDRO WAVE 100 T1 sx photoshop.webp

HYDROFORCE

10 - 20

54 m

2250 lpm

630-730 mm

377-435 mm

151-159 mm

4" - 6"

Da

€6,182.00

Discover
marchio CE v2.webp

CE Marking: Certified Safety and Compliance

All our products proudly bear the CE mark, a declaration attesting to compliance with the essential requirements of European health, safety, and environmental protection legislation. This certification guarantees that every pump has undergone rigorous assessments and complies with applicable EU directives. Choosing CE-marked equipment means choosing reliability, legal compliance, and peace of mind, whether for industrial, construction, or professional use.

Spare parts

Spare parts are always available and can be ordered through an intuitive and efficient system of cataloged diagrams, ensuring full compatibility with every machine. Contact us for assistance!

After-Sales Support

For our dealers, a telephone technical support service is available for any maintenance work.

Everything online and always available!
