HYDROFORCE - high-efficiency pump with abrasion protection

HYDROFORCE - high-efficiency pump with abrasion protection

SKU: HYDROFORCE
€6,182.00Price
Excluding Sales Tax

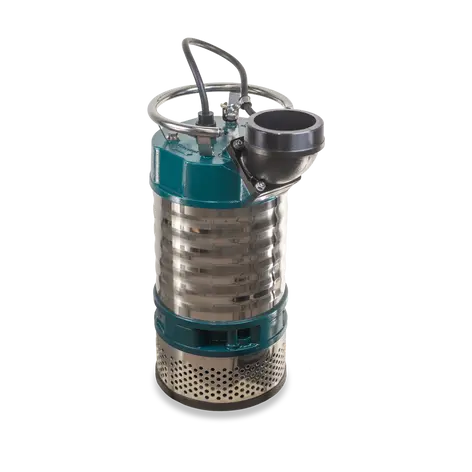

Three-phase submersible pump available in 10, 15, or 20 HP, featuring a closed high-chrome steel impeller, cooling jacket, and 4" or 6" discharge.
High efficiency and durability when handling abrasive fluids. Stainless steel casing with strainer, double Eagle Burgmann mechanical seal for leak protection.
The heat-treated AISI 410/420 shaft and circumferential cooling ensure continuous operation.

Heavy-duty pumps for high-performance industrial drainage

The HYDROFORCE series includes three-phase submersible pumps from 10 to 20 HP, ideal for construction site dewatering, building work, and emergency response applications.

Made entirely of AISI 304 stainless steel, they are robust, corrosion-resistant, and designed for pumping clean or slightly dirty water containing solids up to 8 mm. Equipped with semi-open impellers and silicon carbide mechanical seals, they guarantee high flow rates and heads exceeding 40 meters.

With an IP68 protection rating, integrated thermal sensors, and 20-meter neoprene cables, they ensure reliable performance even in the most demanding conditions.

10 HP - 20 HP

P2

54 m

MAXIMUM HEAD

2200 l/min

MAXIMUM FLOW RATE

Features

  • High-chrome steel closed impeller

  • High resistance to abrasive liquids

  • Stainless steel outer casing and strainer

  • Double mechanical seal EKK Eagle Burgmann CA/CE & SiC/SiC

  • Heat-treated AISI 410/420 stainless steel shaft

  • Efficient circumferential cooling for continuous operation

HYDRO WAVE 75 T dettaglio 1.webp

Want to know more about this product?

Contact us for a quote and discover the discounted price reserved for you!

Select an option
Private User
Company

PRIVACY

I declare that I am at least sixteen years old and, if I am under sixteen, that I have been authorized by the holder of parental responsibility; therefore, I consent to the processing of my personal data as set out in the privacypolicyPolicy.

COMMUNICATION

S I consent to the processing of my personal data to receive newsletters, telephone communications (SMS, WhatsApp, voice calls), informative contact forms, and requests for information.

Connected Sets

Discover the sets that use this product

Details

Important information about key strengths

Integrated handle - Force drainage pump

Integrated metal handle

Easily move the pump thanks to the firm grip provided by this metal handle.

Steel Impeller

Closed impeller in high-chrome steel

The high-chromium steel closed impeller offers significant advantages in terms of durability, wear resistance, and performance. High-chromium steel is extremely resistant to erosion, abrasion, and impact. The closed impeller configuration ensures higher hydraulic efficiency compared to semi-open or open impellers, particularly with clean fluids or those containing a moderate amount of solids.

Included Products

Model Technical Data

To learn every detail about this product

​

MODEL

HP

MAX HEAD

MAX FLOW RATE

SUCT. - DEL.

HYDROFORCE 10T/4

10

39 m

1900 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

4"

Scopri

SUCT. - DEL.

HYDROFORCE 10T/6

10

29 m

2250 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

6"

Scopri

SUCT. - DEL.

HYDROFORCE 15T

15

50 m

1800 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

2" (DN50 PN25)

Scopri

SUCT. - DISCH.

HYDROFORCE 20T

20

54 m

2200 lpm

MAX FLOW RATE

MAX HEAD

HP

MODELLO

6"

Scopri

SUCT. - DEL.

Specifications

Product limits and composition

Operating limits

Liquid temp.

0/40°C (32/104°F)

Features

Frequency

50Hz

Motor

2P (2850 RPM) . Dry motor

Insulation

10HP: Class F ; 15~20HP: Class H

Protection

IP 68

Protector

Auto-Cut

Bearing

Ball type

Mechanical seal

Double mechanical seal

Impeller

Closed impeller

Key Parameters

Materials

Motor cover

AlSi7Mg

Motor housing + stator

AlSi7Mg

Shaft with rotor

10HP:AISI 410 ; 15-20HP:AISI 420

Mechanical seal

Upper: CA/CE ; Lower: SIC/SIC

Pump body

10HP:EN-G JL-200 ; 15-20HP:EN-GJS-700

Impeller

High-chromium steel

Cable

H07RN-F / STOW

Related products

Lightweight submersible drainage pump HYDROBOOST

0.5 HP - 2 HP

18 m

515 l/min

HYDROBOOST

Lightweight submersible drainage pumps

Discover
Professional pump for construction sites and abrasive water HYDROWAVE

2 HP - 7.5 HP

23 m

1900 l/min

HYDROWAVE

Professional pumps for construction sites and abrasive water

Discover

Related accessories

Float switch for DROP pumps

Level control

10(8)

IP68

DWC DROP float switch

Reliable, submersible float switch featuring an integrated counterweight for level control in drainage and wastewater applications.

Discover
blue layflat 1" blue layflat 2"

2" - 3"

4.0 bar

10.0 bar

DWC LAYFLAT

DWC LAYFLAT

Discover

Applications

Typical use cases and environments where this product delivers its best performance

FAQ

?

Where are HYDROFORCE pumps primarily used?

In construction sites, mines, civil works, and emergency situations.

?

What type of impeller do they use?

Closed impellers made of high abrasion-resistant steel.

?

What power ratings are available?

From 10 to 20 HP, with heads up to 54 m and flow rates over <<SIZE:0>>/min.

?

What protections are included?

IP68 protection, integrated thermal sensors, and 20 m neoprene cables.

Product comparison

Compare the main features and performance of similar models

Features

HP

MAX HEAD

MAX FLOW RATE

HEIGHT

MINIMUM WATER LEVEL

WIDTH

DISCHARGE

PRICE

Heavy-duty high-performance pump for industrial drainage HYDROFORCE

HYDROFORCE

10 - 20

54 m

2250 lpm

630-730 mm

377-435 mm

151-159 mm

4" - 6"

From

€6,182.00

HYDRO WAVE 100 T1 sx photoshop.webp

HYDROBOOST

0.5 - 2

17.5 m

515 lpm

310-464 mm

243-313 mm

94 mm

2" (DN50 PN25)

Da

€329.00

Discover
HYDRO WAVE 100 T1 sx photoshop.webp

HYDROWAVE

2 - 7.5

30 m

1900 lpm

555-633 mm

306-324 mm

122-133 mm

2" - 4"

Da

€1,720.00

Discover
marchio CE v2.webp

CE Marking: Certified Safety and Compliance

All our products proudly bear the CE mark, a declaration attesting to compliance with the essential requirements of European health, safety, and environmental protection legislation. This certification guarantees that every pump has undergone rigorous assessments and complies with applicable EU directives. Choosing CE-marked equipment means choosing reliability, legal compliance, and peace of mind, whether for industrial, construction, or professional use.

Spare parts

Spare parts are always available and can be ordered through an intuitive and efficient system of cataloged diagrams, ensuring full compatibility with every machine. Contact us for assistance!

After-Sales Support

For our dealers, a telephone technical support service is available for any maintenance work.
