Spina salvamotore a 5 poli da 16 A con protezione termica regolabile (4–6 A), contattore integrato, invertitore di fase e controllo del senso di rotazione. Involucro in PC/ABS con grado di protezione IP44 e ingressi M16/M25; ideale per pompe e motori fino a 5,5 kW.

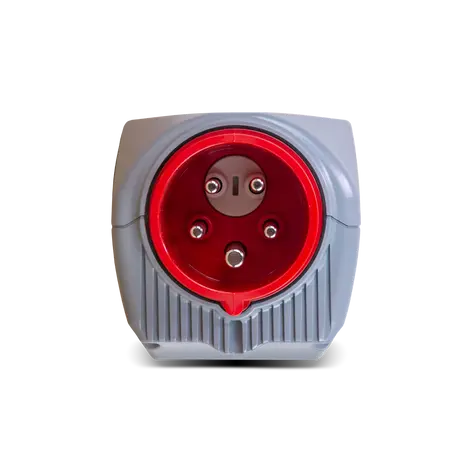

Compact and powerful, the CEE plug with motor protection represents the "all-in-one" solution for the control and protection of pumps and motors up to 5.5 kW. Equipped with a 16 A 5-pin plug (6h), adjustable thermal protection (4–6 A), and an integrated contactor, it guarantees safe and reliable operation. Features include manual/automatic selection, an integrated phase inverter, an operation indicator, and rotating field control. It is ideal for industrial and outdoor environments, thanks to its robust PC/ABS housing, IP44 protection rating, and M16 and M25 cable entries.
PLUG TYPE
MAX CURRENT
PROTECTION CLASS
CEE Motor Protection Contactor 5.5kW PI+BA+RFC 16A 5P 6H (4.0-6.0A) IP44
Housing Material: PC/ABS
Rated Current: 16A
Number of Poles: 5 (3P+N+PE)
Clockwise Position: 6H
Rated Voltage/Frequency: 200/346V~ - 240/415V~ / 50+60Hz
Contacts: Nickel-Plated Brass
Connection Method: Screw Terminals
ON/OFF Rocker Switch (MANUAL/AUTOMATIC)
Motor Setting Range: 4A - 6A
Contactor: 4kW
With Phase Inverter, Function Display, and Rotation Range Monitor
M16 (for Float Switch) and M25 Cable Gland
IP Protection Rating: IP44
Discover the sets that use this product
Important information about key strengths
To learn every detail about this product
xxx
MODEL
Titolo
Titolo
Titolo
Titolo
Product limits and composition
Housing
PC/ABS blend, IP44 degree of protection
Internal components
Copper alloy contacts with silver plating
Cable glands
Double M16 and M25 polyamide cable glands with rubber gaskets
Control knob
Reinforced thermoplastic with non-slip handle
Typical use cases and environments where this product delivers its best performance
?
They provide adjustable thermal protection and direct control for pumps up to 5.5 kW.
?
16A and 32A, with different degrees of protection, IP44 or IP67.
?
Yes, with phase inverter, indicator LEDs, and integrated contactor depending on the model.
?
Yes, with dedicated cable glands and quick connection.
Compare the main features and performance of similar models
Features
MOTOR RANGE
The MAX
PLUG TYPE
CONTROL
EXTRA
PROTECTION
CABLE GLANDS
PRICE
4–6 A
16 A
CEE 5P
ROCKER SWITCH
IP44
LED, PHASE Inverter
M16 + M25
From
€399.00
All our products proudly bear the CE mark, a declaration attesting to compliance with the essential requirements of European health, safety, and environmental protection legislation. This certification guarantees that every pump has undergone rigorous assessments and complies with applicable EU directives. Choosing CE-marked equipment means choosing reliability, legal compliance, and peace of mind, whether for industrial, construction, or professional use.
Spare parts are always available and can be ordered through an intuitive and efficient system of cataloged diagrams, ensuring full compatibility with every machine. Contact us for assistance!
For our dealers, a telephone technical support service is available for any maintenance work.
