Spina di protezione motore a 5 poli da 32 A con interruttore rotativo, taratura regolabile (4–6,3 A), invertitore di fase e controllo del senso di rotazione. Involucro in PC/ABS con grado di protezione IP67 e pressacavo M32; ideale per pompe e apparecchiature per impieghi gravosi.
Designed for heavy-duty environments, the CEE plug with motor protection delivers high performance and complete protection for motors with a rated current between 4.0 and 6.3 A. Thanks to its robust PC/ABS enclosure with IP67 protection rating and 5-pin 32 A CEE connection, the PLUG 2 model ensures high reliability in the most demanding industrial applications, particularly for pumps, fans, and heavy machinery. It features a rotary switch, integrated phase inverter, rotating field monitoring system, and a large M32 cable gland to facilitate wiring.
PLUG TYPE
MAX CURRENT
PROTECTION CLASS
CEE motor protection plug (PKZM0) PI + RFC 32A 5p 6h (4.0-6.3A) IP67
Housing material: PC/ABS
Rated current: 32A
Number of poles: 5 (3P+N+PE)
Clockwise position: 6h
Rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
Contacts: nickel-plated brass
Connection method: screw terminals

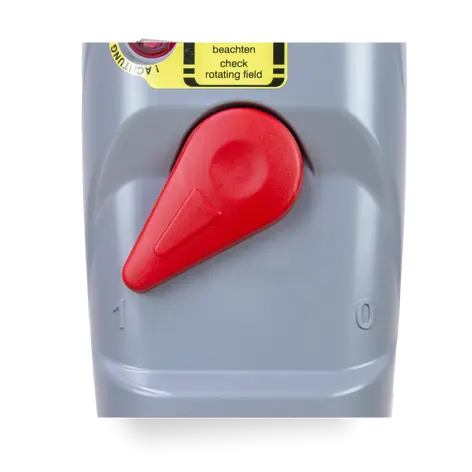

Rotary lever, motor setting range: 4.0A - 6.3A
With phase Inverter and rotation range monitoring
Cable gland: M32
IP protection rating: IP67
Discover the sets that use this product
Important information about key strengths
To learn every detail about this product
xxx
MODEL
Titolo
Titolo
Titolo
Titolo
Product limits and composition
Housing
PA6, degree of protection IP67
Internal components
Copper alloy contacts with nickel-plated finish
Cable gland
Polyamide M32
Control knob
Reinforced thermoplastic with non-slip handle
Typical use cases and environments where this product delivers its best performance
?
They provide adjustable thermal protection and direct control for pumps up to 5.5 kW.
?
16A and 32A, with different degrees of protection, IP44 or IP67.
?
Yes, with phase inverter, indicator LEDs, and integrated contactor depending on the model.
?
Yes, with dedicated cable glands and quick connection.
Compare the main features and performance of similar models
Features
MOTOR RANGE
I MAX
PLUG TYPE
CONTROL
EXTRA
PROTECTION
CABLE GLANDS
PRICE
4–6.3 A
32 A
CEE 5P
ROTARY SELECTOR
IP67
PHASE Inverter
M32
From
€200.00
All our products proudly bear the CE mark, a declaration attesting to compliance with the essential requirements of European health, safety, and environmental protection legislation. This certification guarantees that every pump has undergone rigorous assessments and complies with applicable EU directives. Choosing CE-marked equipment means choosing reliability, legal compliance, and peace of mind, whether for industrial, construction, or professional use.
Spare parts are always available and can be ordered through an intuitive and efficient system of cataloged diagrams, ensuring full compatibility with every machine. Contact us for assistance!
For our dealers, a telephone technical support service is available for any maintenance work.
