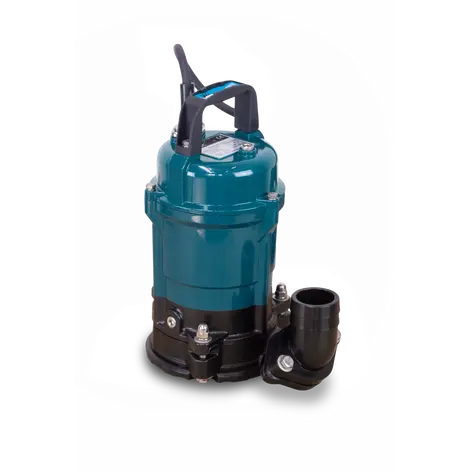

Single-phase submersible pump from 0.5 to 2 HP with semi-open impeller, agitator, and 2" discharge.
Lightweight and durable, ideal for clean or slightly dirty water. Perfect for construction sites, tanks, pits, and residential use. Choose the option that best suits your needs, with or without an integrated float switch, or designed for ground-level suction.
The HYDROBOOST series includes single-phase submersible pumps from 0.5 to 2 HP, designed for dewatering and for applications with sludge and suspended solids in civil and industrial environments.
Equipped with semi-open impellers and integrated agitators, they effectively handle solids and help prevent clogging. The R version has a suction capacity down to 3 mm, while the AK variant features a built-in float switch for reliable level control.
With heads up to 18 meters and flow rates exceeding 500 l/min, HYDROBOOST pumps guarantee efficiency, versatility, and robust performance, making them the ideal choice for demanding dewatering operations and wastewater management.
P2
MAXIMUM HEAD
MAXIMUM FLOW RATE
Semi-open impeller made of high abrasion-resistant resin and DuPont materials
Double mechanical seal / Designed agitator
Automatic thermal protection with reset / Air-lock resistant
Automatic version for use in small sumps or tanks
Important information about key strengths
Compact AISI 304 stainless steel mixer (SMF5030), designed to circulate and mix liquids. The structure with a longitudinal opening and integrated blade promotes efficient flow, improving homogenization.
Guarantees effective protection against overheating under all operating conditions, including locked-rotor conditions. It protects the motor in situations such as: ・Rapid reversing duty (locked-rotor operation) ・Locked rotor or failure to start ・Heavy overloads ・High ambient temperature ・Ventilation system failure
Steel coated with a polyester-based thermoplastic elastomer (TPE-E), combining the mechanical strength of steel with the flexibility, chemical resistance, and corrosion protection of the elastomer. This coating is ideal for use in humid or aggressive environments, where durability and protection against impact and abrasion are essential.
Ensures a secure, comfortable, and non-slip grip for safe transport, even in difficult or wet conditions.
Quick coupling to instantly connect a hose to the pump without using tools
To learn every detail about this product
MODEL
HP
MAX HEAD
MAX FLOW RATE
SUCT. - DISCH.
Product limits and composition
Liquid temp.
0/40°C (32/104°F)
Frequency
50Hz
Motor
2P (2850 RPM) . Dry motor
Insulation
0.5-1HP:Class B ; 2HP:Class F
Protection
IP 68
Protector
Auto-Cut
Bearing
Ball type
Mechanical seal
Double mechanical seal
Impeller
Semi-open impeller
Motor cover
ADC12
Motor frame
ADC12+Steel
Shaft
AISI 410
Mechanical seal
Upper: CA/CE ; Lower: SIC/SIC
Pump body
EN-G JL-200
Impeller
Hytrel
Cable
H07RN-F / SJTOW / STOW
Typical use cases and environments where this product delivers its best performance
?
HYDROBOOST pumps are ideal for civil and industrial drainage, dirty water, sludge and light sand, thanks to open or semi-open impellers and integrated agitators.
?
Some HYDROBOOST models can drain down to 3 mm, ensuring almost complete emptying.
?
Yes, thanks to automatic thermal protection and the anti-air lock system.
?
From 0.5 to 2 HP, with heads up to 18 m and flow rates over 500 l/min.
Compare the main features and performance of similar models
Features
HP
MAX HEAD
MAX FLOW RATE
HEIGHT
MINIMUM WATER LEVEL
WIDTH
SUCT. - DISCH.
PRICE
0.5 - 2
17.5 m
515 lpm
310-464 mm
243-313 mm
94 mm
2" (DN50 PN25)
From
€329.00
All our products proudly bear the CE mark, a declaration attesting to compliance with the essential requirements of European health, safety, and environmental protection legislation. This certification guarantees that every pump has undergone rigorous assessments and complies with applicable EU directives. Choosing CE-marked equipment means choosing reliability, legal compliance, and peace of mind, whether for industrial, construction, or professional use.
Spare parts are always available and can be ordered through an intuitive and efficient system of cataloged diagrams, ensuring full compatibility with every machine. Contact us for assistance!
For our dealers, a telephone technical support service is available for any maintenance work.
