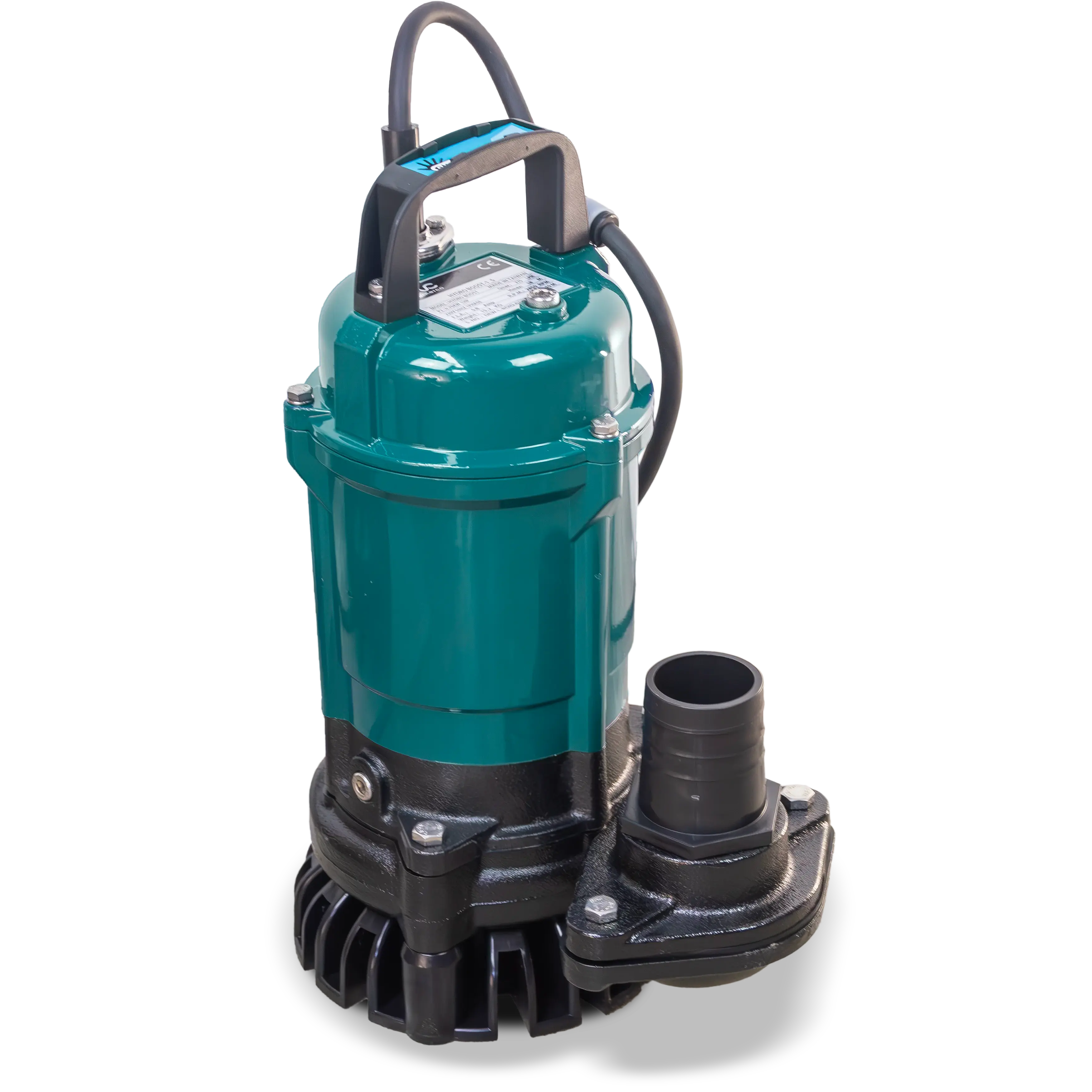

Versatile submersible pump for draining clear and slightly dirty water.
This submersible pump features a compact and lightweight design, engineered to deliver high performance in a variety of environments, making it ideal for water drainage in residential areas, construction sites, or flood-prone zones. Its sturdy yet easy-to-handle structure makes it highly portable and perfectly suited for use in confined spaces such as pits, basements, or collection tanks.
High abrasive resistance resin semi-open impeller and material by DuPont
Double mechanical seal / Designed Agitator
Auto reset thermal protector / Non air locking
Auto version for small pit usage
Discover related kit solutions for this product
Discover related kit solutions for this product
Ensures a secure, comfortable and non-slip grip for safe transport even in tough or wet conditions.
Ensures effective protection against overheating under all operating conditions, including rotor lock. It safeguards the motor in situations such as: ・Plugging duty (locked rotor service) ・Rotor blockage or failure to start ・Heavy overloads ・High ambient temperature ・Ventilation system failure
Steel coated with a polyester-based thermoplastic elastomer (TPE-E), combining the mechanical strength of steel with the flexibility, chemical resistance and corrosion protection of the elastomer. This coating is ideal for use in humid or aggressive environments where durability and protection against impacts and abrasion are essential.
Discover related kit solutions for this product
Dimensions
HEIGHT
377
mm
MAXIMUM DIMENSION (WIDTH)
279
mm
LOWER RUNNING WATER LEVEL
84
mm
DISCHARGE
3
"
WEIGHT
13.9
kg
Parts and Material List
1
Cable
H07RN-F / SJTOW / STOW
2
Handle
Nylon 6
3
Motor Cover
ADC12
4
Bracket
Steel
5
Motor Housing + Stator
ADC12+Steel
6
Shaft with Rotor
AISI 410
7
Oil Chamber
0.5-1HP:EN-GJL-200
2HP:AISi7Mg
8
Mechanica Seal
Upper:CA/CE
Lower:SIC/SIC
11
Impeller
Hytrel
12
Pump Casing
EN-GJL-200
15.1
Upper Bearing
NTN/TPI
15.2
Lower Bearing
NTN/TPI
16
Strainer
PVC
28
Agitator
SMF5030
Model
HP
kW
Inch
Q
(lpm)
0
100
200
400
600
Q
(m³/h)
0
10
20
30
35
HYDROBOOST 1S
1
0.75
2"(3")
H(m)
18
15.8
11.4
-
-
H(m)
18
13.1
3
-
-
Specifications
All our products proudly bear the CE marking, a declaration that they meet the essential requirements of European health, safety, and environmental protection legislation. This certification ensures that every pump has undergone rigorous assessment and complies with applicable EU directives. Choosing CE-marked equipment means choosing reliability, legal conformity, and peace of mind—whether for industrial, construction, or professional use.
Spare parts are always available and can be ordered through an intuitive and efficient system of catalogued diagrams, ensuring full compatibility with each machine.
