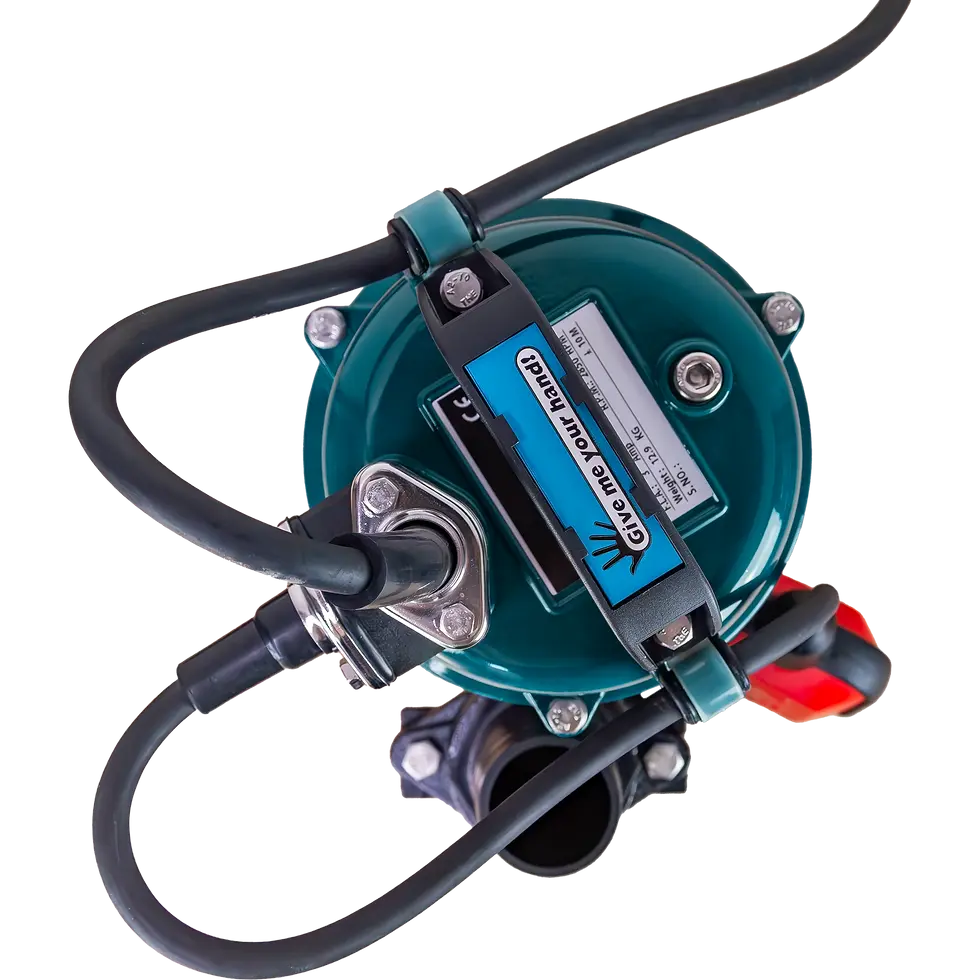

0.5 HP single-phase submersible pump with semi-open impeller, agitator, auto float switch and 10 m 2" hose.
Automatic start and stop based on water level. Compact and lightweight, perfect for residential use, job sites and flooded areas.
Versatile and highly efficient in a variety of environments, HYDROBOOST 0.5AKS is suitable for water drainage in residential areas, construction sites or flood-prone zones. With a compact and lightweight design and a robust yet easy-to-handle structure, this submersible pump is easy to transport and suitable for use in confined spaces such as pits, basements or collection tanks.
0.5 HP Single Phase Submersible Sludge Pump - Semi-Open Impeller with Agitator - 10M 2" - AUTO KEY FLOAT SWITCH
Discover related kit solutions for this product
All you need to know about this product
Ensures a secure, comfortable and non-slip grip for safe transport even in tough or wet conditions.
Ensures effective protection against overheating under all operating conditions, including rotor lock. It safeguards the motor in situations such as: ・Plugging duty (locked rotor service) ・Rotor blockage or failure to start ・Heavy overloads ・High ambient temperature ・Ventilation system failure
The pump features a built-in float switch that automatically controls start and stop based on the water level, preventing dry running.
A fitting that allows quick and secure connection of the pump to a flexible hose, making installation and operation easier.
High-resistance technopolymer base with integrated mesh filter to block solid impurities. Protects the pump, simplifies installation and maintenance. Ideal for clean or slightly dirty water.
Steel coated with a polyester-based thermoplastic elastomer (TPE-E) for enhanced flexibility, chemical resistance, and corrosion protection. Ideal for humid or aggressive environments requiring durability and impact resistance.
Essential specifications and dimensions for installation and selection
HEIGHT
352
mm
MAXIMUM DIMENSION (WIDTH)
400
mm
LOWER RUNNING WATER LEVEL
84
mm
DISCHARGE
2
"
WEIGHT
11.3
kg
1
Cable
H07RN-F / SJTOW / STOW
2
Handle
Nylon 6
3
Motor Cover
ADC12
4
Bracket
Steel
5
Motor Housing + Stator
ADC12+Steel
6
Shaft with Rotor
AISI 410
7
Oil Chamber
0.5-1HP:EN-GJL-200
2HP:AISi7Mg
8
Mechanica Seal
Upper:CA/CE
Lower:SIC/SIC
11
Impeller
Hytrel
12
Pump Casing
EN-GJL-200
15.1
Upper Bearing
NTN/TPI
15.2
Lower Bearing
NTN/TPI
16
Strainer
PVC
28
Agitator
SMF5030
Model
HP
kW
Inch
Q
(lpm)
0
100
200
400
600
Q
(m³/h)
0
10
20
30
35
HYDROBOOST 05AKS
0.5
0.37
2"
H(m)
11.9
9.9
3.8
-
-
H(m)
11.9
6.5
-
-
-
Liquid Temp.
0/40°C (32/104°F)
Application
As suggested application in the section below
Frequency
50Hz
Motor
2P (2850RPM) . Dry Motor
Insulation
0.5-1HP:Class B ; 2HP:Class F
Protection
IP 68
Protector
Auto-Cut
Bearing
Ball Type
Mech. Seal
Double Mechanical Seal
Impeller
Semi-Open Impeller
Motor Cover
ADC12
Motor Frame
ADC12+Steel
Shaft
AISI 410
Mech. Seal
Upper: CA/CE ; Lower: SIC/SIC
Pump Casing
EN-G JL-200
Impeller
Hytrel
Cable
H07RN-F / SJTOW / STOW
?
HydroBoost pumps are ideal for civil and industrial drainage, dirty water, sludge, and light sand, thanks to open or semi-open impellers and integrated agitators.
?
Some HydroBoost models can pump down to 3 mm, ensuring nearly complete drainage.
?
Yes, thanks to the automatic thermal protection and the anti-air lock system.
?
From 0.5 to 2 HP, with heads up to 18 m and flow rates over 500 l/min.
All our products proudly bear the CE marking, a declaration that they meet the essential requirements of European health, safety, and environmental protection legislation. This certification ensures that every pump has undergone rigorous assessment and complies with applicable EU directives. Choosing CE-marked equipment means choosing reliability, legal conformity, and peace of mind—whether for industrial, construction, or professional use.
Spare parts are always available and can be ordered through an intuitive and efficient system of catalogued diagrams, ensuring full compatibility with each machine. Contact us for assistance!
For our Dealers, a telephone technical assistance system is set up to perform any maintenance intervention.
